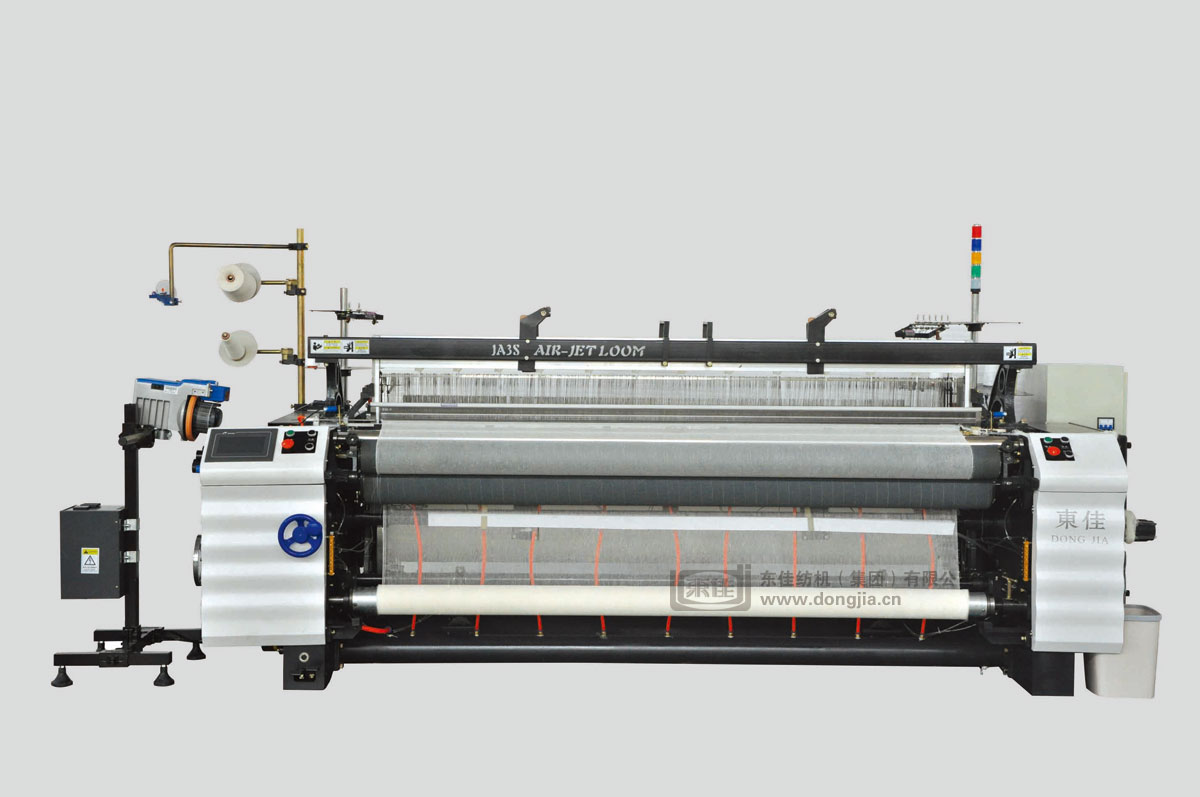

INTRODUCTION:
THIS MACHINE IS OF UNIQUE DESIGN, SIMPLIFYING THE AIR-JET LOOM, ADOPTING
INDIVIDUAL AND CENTRAL AIR SUPPLY WEFT INSERTION
AND MAN-MACHINE INTERFACE CONTROL SYSTEM, AND REDUCING MANUFACTURING COST,

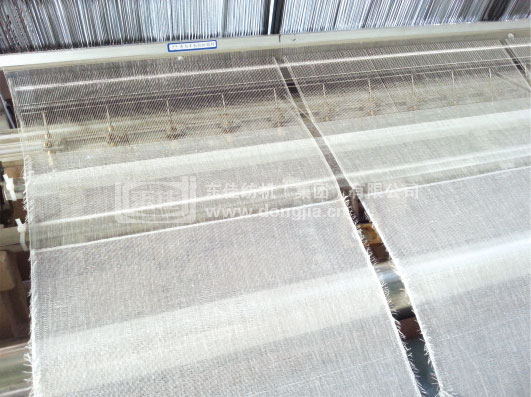

APPLICABLE TO WEAVE MEDICAL GAUZE FABRICS AND SIMPLE TEXTURE COTTON FABRICS,
CHEMICAL FIBER FABRICS AND BLEND FABRICS.
TECHNICAL PARAMETERS:
1. REED SPACE: NOMINAL REED
SPACE 170，190, 210, 230, 280, 340（CM）
2. WEFT OPTION: SINGLE-NOZZLE,
DOUBLE-NOZZLE
3. POWER: 1.8KW, 2.2KW, 2.8KW,
3.7KW.
4. APPLICABLE SPEED: 400~600RPM

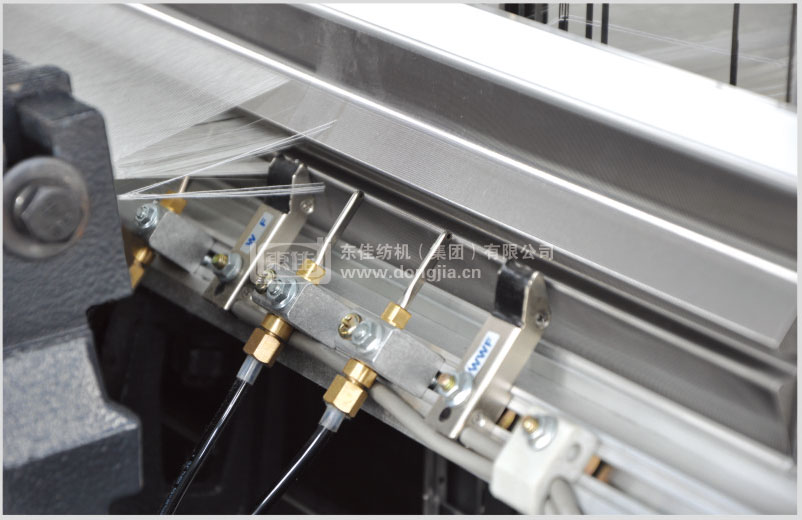

5. WEFT INTERTION FORM: MAIN
NOZZLE, AUXILIARY NOZZLE COMBINED TYPE; ELECTRO-MAGNETIC VALVE CONTROL, PROFILE
REED WEFT INSERTION.
6. SHEDDING: CRANK SHEDDING
7. LET-OFF: MECHANICAL OR
ELECTRONIC LET-OFF, APPLICABLE BEAM FLANGE DIA.φ600MM ORφ800MM.

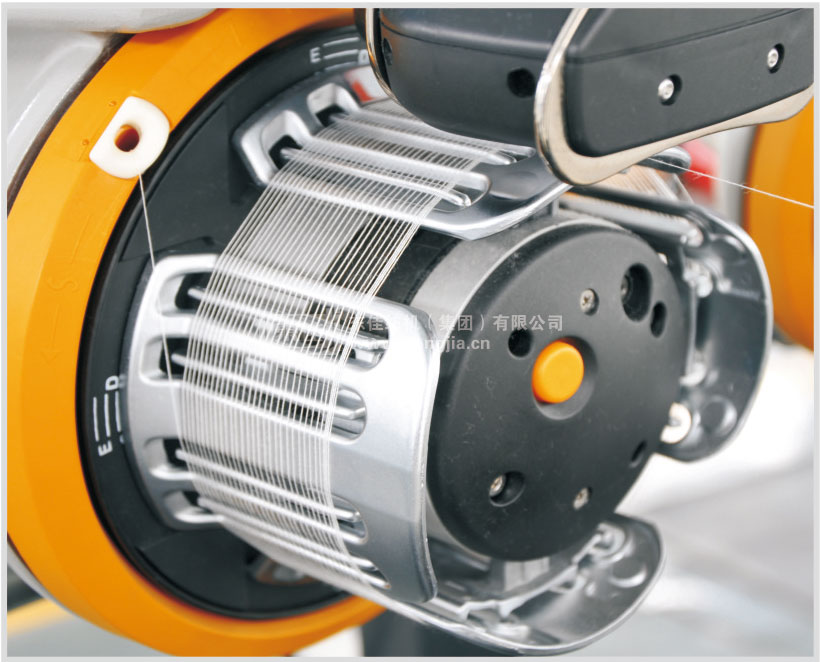

8. WEFT STORER: ELECTRONIC LENGTH WEFT
STORER
9. SELVEDGE: ROUGH EDGE OR PLAIN EDGE, BY PLANETARY GEAR
10. WEFT CUTTING: MECHANICAL
CUTTER

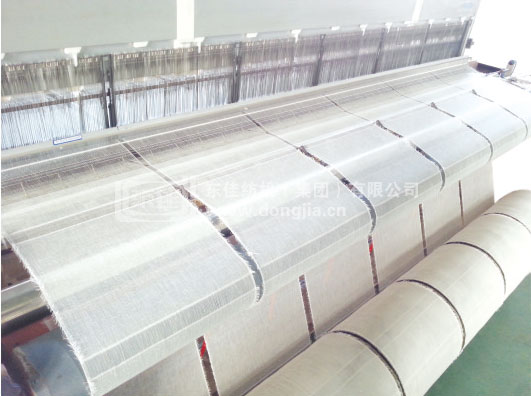

11. TAKE-UP FORM: MECHANICAL OR ELECTRONIC TYPE, THE MACHINE WINDING
DIA. Φ520MM; OPTIONAL WINDING DIA. OUTSIDE THE
MACHINE UP TO Φ1200MM.
12. AIR SUPPLY：INDIVIDUAL AIR SUPPLY, CAN CHOOSE SINGLE AIR
PUMP OR THE MAIN AND AUXILIARY DOUBLE PUMP; CAN CHOOSE CENTRAL AIR SUPPLY.
13. AUTO STOP MOTIONS:
WEFT PROTECTOR: 2 PHOTOELECTRIC TYPE WEFT FEELERS; WARP PROTECTOR:
CONTACT LEVER TYPE;
14.TOUCH SCREEN
CONTROL: CAN DISPLAY VARIOUS FAULT CAUSES; DISPLAY VARIOUS PRODUCTION
INFORMATION. MULTI-FUNCTION 4-COLOR LAMP.
