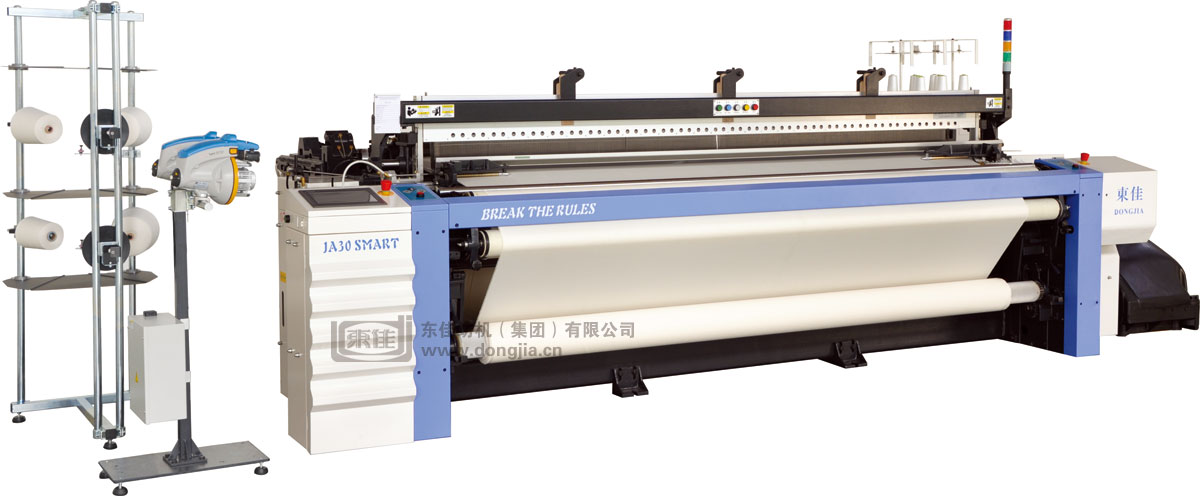

JA30 TYPE AIR-JET
LOOM IS A HIGH-PERFORMANCE AIR-JET LOOM DEVELOPED BY OUR COMPANY INDEPENDENTLY
BASING ON DIGESTIVE ABSOPTION OF ADVANCED WEAVING MACHINERY TECHNOLOGY HOME AND
ABROAD, AND IN COMBINATION WITH CONSTANT IMPROVEMENT REQUIREMENTS TO THE WEAVING
MACHINES FROM DOMESTIC AND FOREIGN USERS AT PRESENT. THIS MACHINE WAS EQUIPPED
WITH ULTRA STRENGTH FRAMEWORKS AND SUPER START
MOTORS, BEATING-UP DYNAMIC BALANCE MECHANISM SUITABLE TO HIGH-SPEED WEAVING,
ADVANCED AND STABLE ELECTRICAL CONTROL SYSTEM, DOUBLE BACK GIRDER MECHANISM
THAT CAN KEEP CONSTANT TENSION OF WARP YARNS AND SUPER ENERGY-SAVING
WEFT INTERTION SYSTEM, ETC.. THEREFORE, THIS MACHINE EMBODIES FEATURES SUCH AS
HIGH GRADE, HUMANIZED DESIGN, ENERGY-SAVING AND CONSUMPTION REDUCTION, EASY
OPERATION AND HIGH WEAVING EFFICIENCY, ETC., AND IT’S THE OPTIMAL CHOICE FOR
DOMESTIC AND FOREIGN WEAVING USERS.
FEATURES：
HIGH STRENGTH FRAMEWORK
ADOPT TOUGH BOTH-SIDE BOX TYPE SIDE FRAMES AND SOLID CROSS RAILS TO
FORM HIGH-RIGID FRAMEWORKS WITH MID-SUPPORTERS TO MAKES LOOM’S HIGH-SPEED RUNNING MORE
STABLE AND ADVANTAGEOUS TO ACHIEVE WIDE BREADTH AND LOW NOISE OF LOOMS.
MID-SUPPORTER OF
BEATING-UP SHAFT
ADOPT SOLID SHAFT WITH MID-SUPPORTERS FOR BEATING-UP
SHAFTS, ADVANTAGEOUS TO IMPROVE THE RIGIDITY OF BEATING-UP MECHANISM, ENSURING
ACCURATE AND STRONG LOOM BEATING-UP WHILE ITS HIGH-SPEED RUNNING, MORE BENEFICIAL
TO WEAVE HEAVY AND HIGH WEFT DENSITY FABRICS .
SUPER START MOTOR
ADOPT ADVANCED SUPER START
MOTOR TO ACHIEVE HIGH-TORSION WHILE LOOM STARTING WHICH IS ADVANTAGEOUS TO
INCREASE THE BEATING-UP FORCE OF THE FIRST WEFT; AT THE SAME TIME ADOPT
HIGH-CAPACITY ELECTROMAGNETIC BRAKING TO REALIZE LOOM’S ACCURATE POSITIONING
AND EFFECTIVELY AVOID STOP MARKS FOR IMPROVING THE QUALITY OF FABRICS.
LUBRICATION
ADOPT OIL-BATH TYPE LUBRICATION FOR THE MAIN DRIVING POSITIONS AND CENTRALIZED LUBRICATION SYSTEM
FOR GENERAL POSITIONS FOR EFFECTIVELY INCREASING THE SERVICE LIFE OF SPARE
PARTS, EASY OPERATION AND LABOR INTENSITY REDUCED.
DOUBLE BACK GIRDER MECHANISM
ONE FIXED GIRDER IS ADDED
BEHIND THE INDUCTION GIRDER, AND THIS GIRDER CAN KEEP THE PRESSURE ANGLE OF
YARN TO THE INDUCTION GIRDER UNCHANGED AND THE YARN TENSION FROM FULL
BEAM TO EMPTY BEAM CONSTANT TO ENSURE THE QUALITY OF FABRICS.

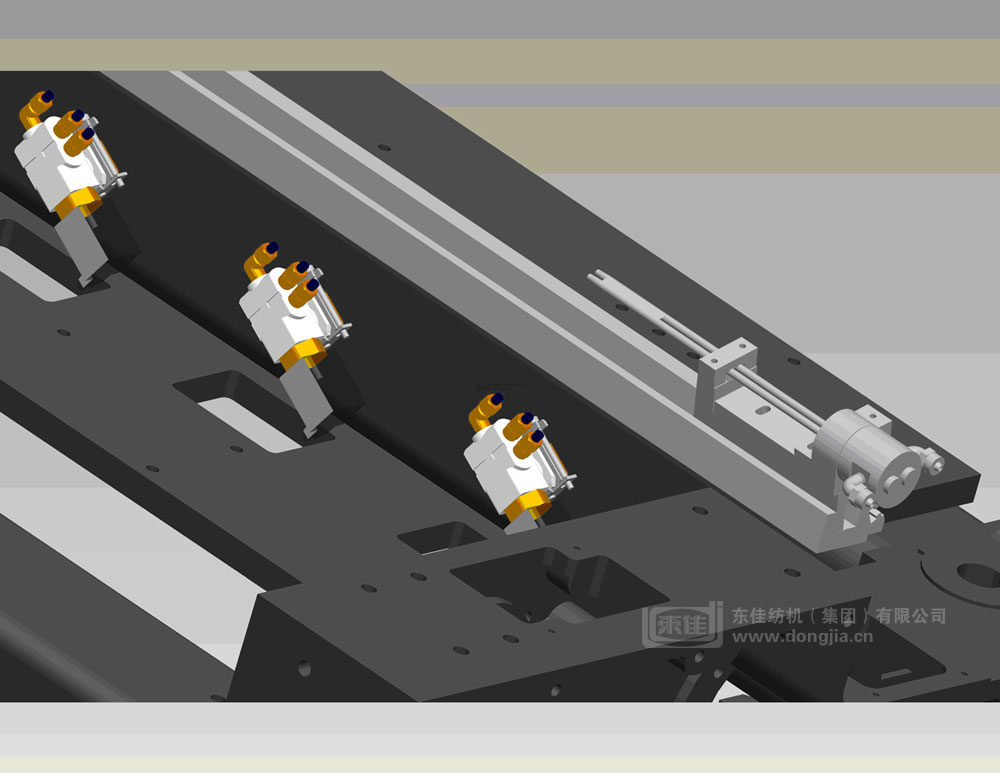

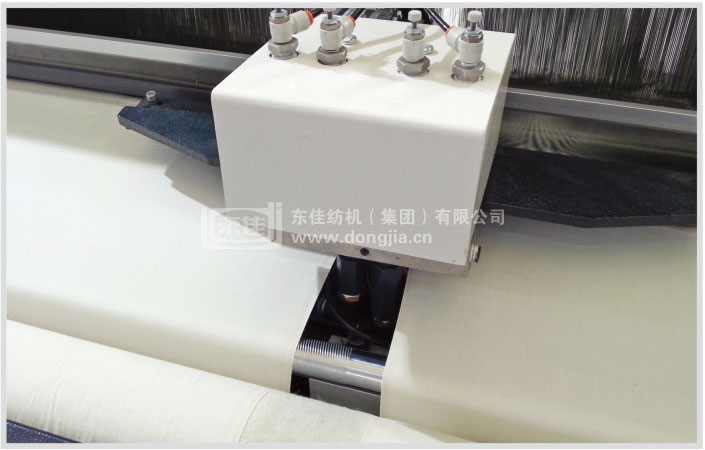

NEW TYPE WEFT INSERTION SYSTEM
THE NEW TYPE MANIFOLD INTEGRATED ELECTROMAGNETIC
VALVE IS OF HIGH SENSITIVITY, CAN KEEP THE PRESSURE STABLE WHILE HIGH AND DENSE
JETTING AND REALIZE STABLE WEFT INSERTION WHILE SUPER HIGH-SPEED OPERATION.
OPTIMIZE FRONT UPPER BEAM AND AIR CHANNEL STRUCTURE, SHORTEN
THE DISTANCE FROM THE ELECTROMAGNETIC VALVE TO THE SUB-NOZZLE, ENHANCE
THE JET SENSITIVITY AND REDUCE AIR CONSUMPTION.
BEATING-UP MECHANISM
HANISM BASED ON COMPUTER AIDED OPTIMUM DESIGN CAN
INCREASE THE RELATIVE DWELL TIME OF SLEY AT THE BACK
TO REALIZE STABLE WEFT INSERTION WHILE HIGH-SPEED OPERATION, SUITABLE TO
HIGH-SPEED LOOM OR WIDE LOOM. OPTIMALLY-DESIGNED 4-LINK ROD BEATING-UP
MECHANISM IS OF SHORT STROKE AND SMALL VIBRATION, AND CAN EFFECT STRONG
BEATING-UP WHILE HIGH-SPEED OPERATION, SUITABLE TO HIGH-SPEED NARROW LOOM.
DOUBLE WEFT FEELER
ADOPT DOUBLE-FEELER TYPE NOT ONLY FOR SHORT WEFT,
BUT ALSO FOR LONG WEFT AND BROKEN WEFT; UTILIZE DIGITAL CONTROL TECHNOLOGY AND
INTELLIGENT SIGNAL PROCESSING TO ENHANCE FEELING ACCURACY AND RELIABILITY.
NEW TYPE ELECTRICAL CONTROL SYSTEM
LARGE-SCREEN COLOR LCD TOUCH SCREEN AND HUMAN INTERFACE
ARE FIXED TO DISPLAY SOME INFORMATION SUCH AS RUNNING STATUS, FAULT ANALYSIS, TECHNOLOGICAL PARAMETERS, ETC. ON THE SCREEN,
CONVENIENT FOR OPERATION; THE USB COMMUNICATION INTERFACE IS FIXED TO INPUT
VARIOUS SETTING PARAMETERS INTO OTHER LOOMS. WEAVING GUIDANCE SYSTEM CAN
MONITOR THE WORKING STATUS OF LOOMS AT ANY TIME AND BE USED TO SET THE OPTIMUM
TECHNOLOGICAL PARAMETERS ACCORDING TO LOOM CONDITIONS AND FABRIC TECHNOLOGY,
FURTHER IMPROVING THE STOP MARK PREVENTING FUNCTION OF LOOMS AND INCREASING THE
QUALITY OF FABRICS.
|
ITEM
|
SPECIFICATIONS
|
OPTIONAL PARTS
|
|
REED SPACE
|
NOMINAL REED SPACE：190、210、230、250、280、340、360cm
|
|
|
EFFECTIVE REED SPACE：0～60cm(190～250cm)NOMINAL REED SPACE MINUS 0～60cm(190～250cm)，0～80cm(ABOVE 280cm)NOMINAL REED SPACE MINUS 0～80cm(ABOVE 280cm)
|
|
|
YARN RANGE
|
SPUN：Ne100～Ne5
|
|
|
FILAMENT：50D～900D
|
|
|
WEFT SELECTION
|
2-NOZZLE,4-NOZZLE FOR FREE CHOICE
|
|
|
DRIVE
|
DIRECT CONTROL AND POSITIONING STOP THROUGH ELECTROMAGNETIC BRAKE
|
|
|
PUSH-BUTTON BIMANUAL OPERATION AND FORWARD-REVERSE INCHING MOTION
|
|
|
3.0kw() 3.7kw() 6.5kw()
ULTRA START MOTOR 3.0KW (CAM SHEDDING) 3.7KW (DOBBY SHEDDING) 6.5KW (JACQUARD SHEDDING)
|
|
|
引纬
WEFT INSERTION
|
MAIN NOZZLE AND SUB-NOZZLE COMBINED TYPE
|
STRETCH NOZZLE
|
|
ADOPT PROFILE REED
|
|
|
AUXILIARY MAIN NOZZLE
|
|
|
开口
SHEDDING
|
POSITIVE CAM SHEDDING: HEALD FRAMES MAX.8 PCS
|
|
|
OBBY SHEDDING: HEALD FRAME MAX.16PCS
|
|
|
JACQUARD SHEDDING
|
|
|
LET-OFF
|
POSITIVE CONTINUOUS LET-OFF
|
|
|
(280cm)SINGLE WARP BEAM (BELOW 280CM)
|
TWIN BEAM
|
|
POSITIVE EASING, DOUBLE BACK GIRDER
|
|
|
￠800 FLANGE DIA.: ￠800
|
￠914、￠1000
|
|
TAKE-UP
|
ELECTRONIC TAKE-UP
|
MECHANICAL WINDING
|
|
25～205 25～300 PICK DENSITY RANGE: 25~205PCS/INCH
(MECHANICAL TAKE-UP), 25~300PCS/INCH (ELECTRONIC TAKE-UP).
|
|
|
ENGTH COUNTER: DISPLAY OF WEAVING REPORTS, WITH FIXED-LENGTH STOP FUNCTION.
|
|
|
￠600mm,￠520mm()
MAX. TAKE-UP DIA.: Φ600MM(CAM,DOBBY,JACQUARD SHEDDING); Φ520MM (CRANK SHEDDING)
|
|
|
TEMPLE: TOP-MOUNTED TYPE.
|
|
|
BEATING-UP
|
CRANK TYPE MULTIPLE SLEY SWORD BEATING-UP MECHANISM
|
|
|
(190～280cm)，(280cm)
4-LINK ROD BEATING-UP(190~280CM)
6-LINK ROD BEATING-UP (ABOVE 280CM)
|
|
|
MEASURING/STORING
|
VIBRATING TYPE PICK STORER
|
|
|
WEFT STAND
|
FLOOR-MOUNTED 4 CONES (2-NOZZLE); FLOOR-MOUNTED 8 CONES (4-NOZZLE)
|
|
|
SELVEDGE
|
PLANETARY GEAR MOTION
|
|
|
WASTE FILLING REMOVAL
|
CATCH CORD TYPE
|
|
|
CUTTER
|
MECHANICAL TYPE
|
|
|
LUBRICATION
|
OIL BATH SYSTEM FOR THE MAIN DRIVING PARTS, CENTRALIZED LUBRICATION BY MANUAL
|
AUTOMATIC CENTRALIZED LUBRICATION
|
|
AUTO-STOP MOTION
|
EFT YARN: PHOTOELECTRIC WEFT FEELER, DOUBLE FEELERS
|
|
|
WARP YARN: ELECTRIC CONTACT-TYPE 6-ROW DROPPERS
|
|
|
THERS: STOP MOTION FOR SELVEDGE AND CATCH CORD YARN
|
|
|
TOP CAUSE INDICATION: INFORMATION DISPLAY ON TOUCH SCREEN,MULTIPLE FUNCTION 4-COLOR LAMP DISPLAY
|
|
|
AUTOMATION
|
TIFICIAL INTELLIGENT TOUCH SCREEN: WITH FUNCTIONS OF PARAMETER SETTING, AUTOCONTROL,AUTOMATIC MONITORING, SELF-DIAGNOSIS.
|
|
|
ICK FINDING DEVICE:AUTOMATIC PICK FINDER
|
|
|
LOW INCHING BY INVERTER (FORWARD, REVERSE)
|
|
|
USB DATA INTERFACE
|
|
